WEEM 1128 SiC Segmented Belt / Silicon Carbide Polyester Cloth Wide Sanding Belt For Wood-Based Panel
Quick Detail:
WEEM 1128 SIC SEGMENTED SANDING BELT is designed for heavy-duty surface sanding, featuring premium silicon carbide grain on a Z-weight polyester backing. As a custom segmented (sectional) belt, WEEM 1128 can be made in widths from 1400 mm up to 3000 mm or more, with 2–3 joints. It is an ideal choice for surface finishing of MDF, chipboard, and plywood panels.
Specifications:
| Backing: | Premium Z-Weight Waterproof Polyester Cloth |
| Treatment: | Antistatic |
| Coating: | Close Coated |
| Bonding: | Resin Over Resin |
| Grain: | Premium Silicon Carbide |
| Segmented Belt Width: | 1828mm/72"~ 3300mm/130" |
Grit Range:
| P24 | P36 | P40 | P50 | P60 | P80 | P100 | P120 | P150 | P180 | P220 | P240 | P280 | P320 | P400 |
| ○ | ○ | ● | ● | ● | ● | ● | ● | ● | ● | ● | ○ | ○ | ○ | ○ |
● : Regular ○ : Custom
Joint Options:
WEEM 1128 wide belts are available with 4 types of joints to suit different sanding systems and requirements.
Tape on gain line joint:
as default.
Tape on gain zigzag joint:
Tape on butt line joint:
Tape on butt zigzag joint:
Applications:
Designed for wide belt sanders such as Steinemann, Imeas, Sofuma, etc.
Woodworking / Wood-based Panel / MDF / HDF / OSB / Plywood / Laminate Sheet / Chipboard / Particle Board / Glass / Common Metal
Competitive Advantage:
- Designed for high-load sanding applications on engineered wood panels
- YY-weight anti-static polyester backing ensures dimensional stability and durability
- Premium silicon carbide grain for aggressive cutting and long service life
- Ideal for converting into segmented belts for wide belt sanders like Steinemann, Imeas, Sofuma
- High cost-performance ratio compared to global brands such as SIA and Sunmight
Description:

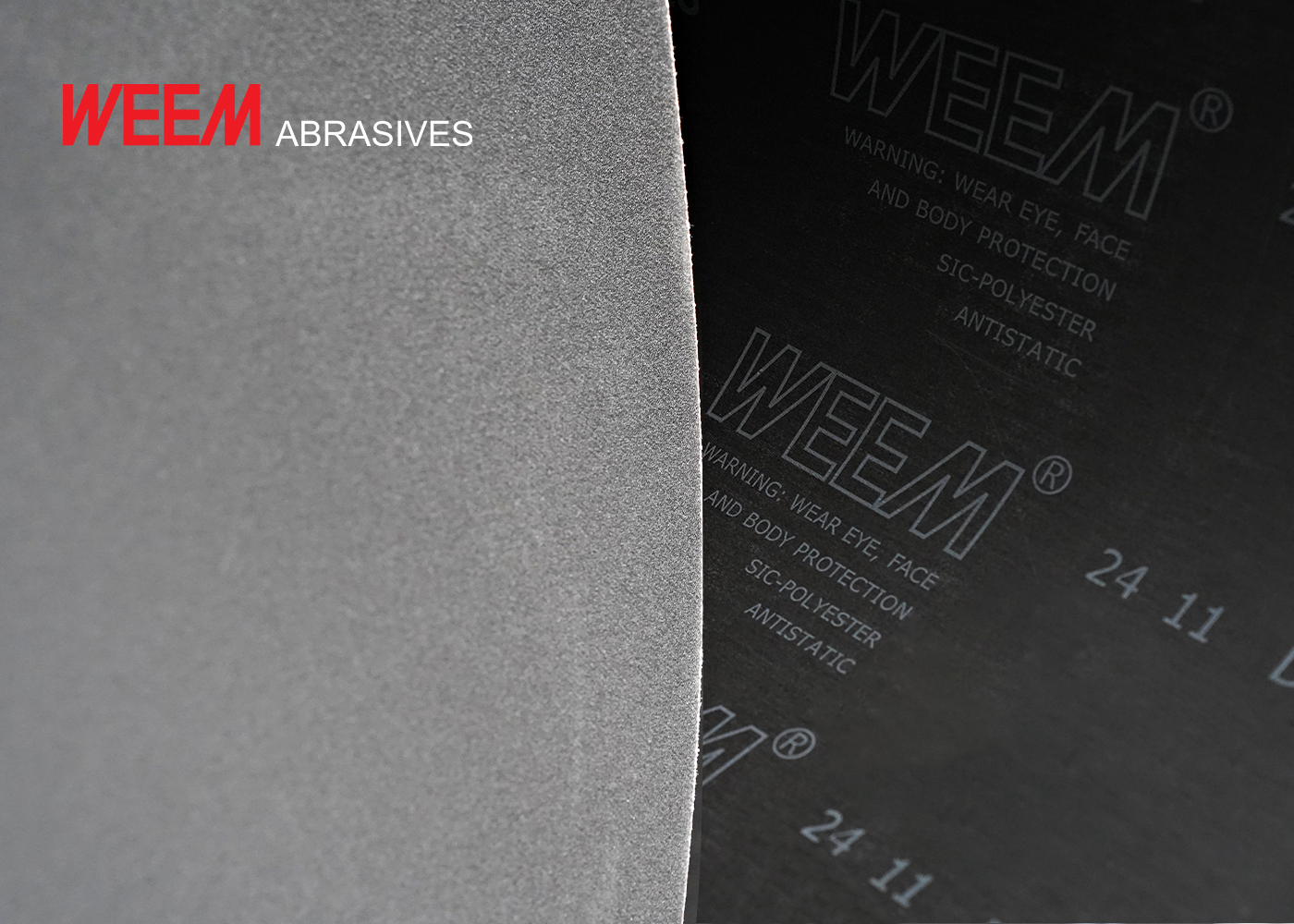

WEEM 1128 SIC SEGMENTED SANDING BELT is converted from WEEM 1128 SIC Z-CLOTH ABRASIVE, specifically engineered for use in segmented belt applications. It offers a cost-effective solution for the panel sanding industry. The product features a YY-weight waterproof polyester backing, selected for its superior rigidity and tensile strength — making it ideal for maintaining dimensional stability across wide belts. An anti-static treatment is applied to reduce or prevent loading issues during sanding.
The abrasive grain is premium-grade silicon carbide, known for its hardness, sharpness, and brittle crystalline structure. It produces fine, straight-edged scratch patterns and is especially effective under light pressure, making it well-suited for precision panel sanding. A closed-coat construction ensures maximum grain coverage, delivering more cutting points per square inch. This results in faster stock removal, longer belt life, and a finer finish.
WEEM 1128 segmented belts are available in custom sizes to meet specific machine requirements. Common belt dimensions include:
- 1950 mm × 2800 mm
- 2650 mm × 3200 mm
- 2950 mm × 3200 mm
Each belt is joined with a high-strength bi-directional tape splice, ensuring reliable joint durability under continuous operation.
